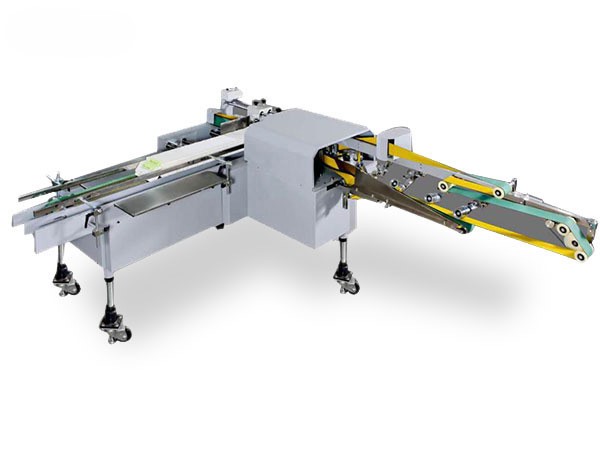

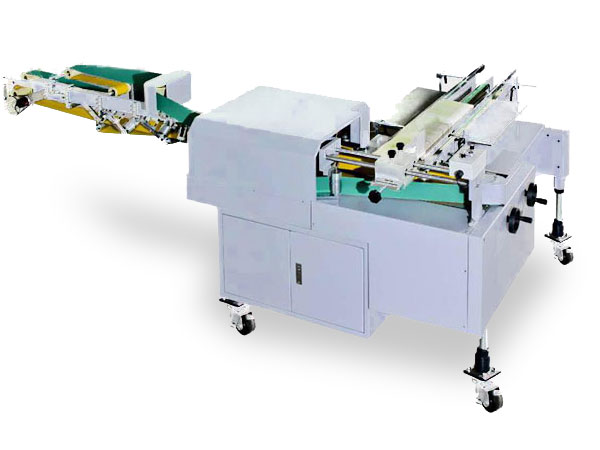

GK-450 Automatic Box Stacker
Stacker
Stacker is a kind of unique multi-purpose tool that can be used to folding the carton,and to make the packaging more easy.Its operation is simple and humanized design can use for almost all types of carton packaging.We make paste box machine production line speed increased to 10 million boxes/hours packing of only the two people,excellent quality of cast a lasting benefits!
Main application range
For most high-speed automatic folder gluer in the market,their pressure box transportation department and the poultice box,cosmetics boxes,and other small cardboard package box,and collection box for the traditional closed box too late to collect box packing can be used in automatic closing box machine device,automatic closing box machine design have synchronizer device and the linkage of box pasting machine.
Traditional folder gluer machine receive the box by the tile collection way,when the machine running at a high speed,worker always can’t receive the box timely.Cause the low efficiency,or need more person to receive.
| Box size range (Min.~Max.) | 60x90mm~450*200 mm |
| Machine dimension | 2100*2000 mm |
| weight | 500KG |
| voltage | 220V/50HZ |
| power | 12KW |
Automatic receive box machine to transfer the box from folder gluer by belt to structure, direction of stacking cartons of stereoscopic turn of 90 degrees,so the paper boxes stacked way many convenient than flat out stack.Only two person can cope with folder gluer folded box at a speed of 200 meters/min,which greatly improves the work efficiency,and also reduces the labor intensity,and not broke the original counting.
Main technical parameters
| Model | GK-450 |
| The biggest size box | 450*200mm |
| Machine dimension | 2100*2000mm |
| Weight | 500KG |
| Voltage | 220V/50Hz |
| Power | 1.2KW |
