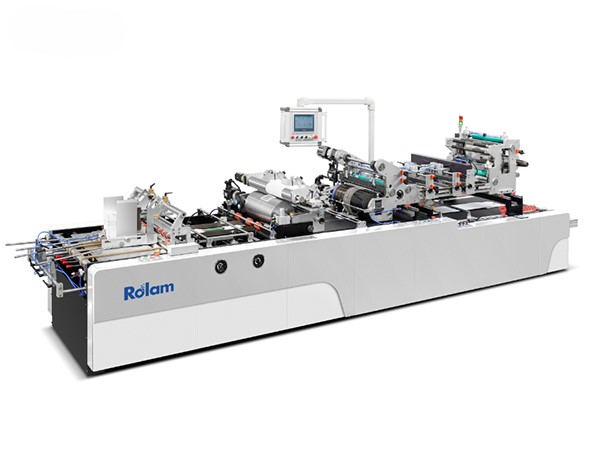

XY1100-S Automatic Window Patching Machine(With Full Servo Motor System
Introduction of the machine:
XY-1100-S corner cutting Window Patching Machine is a fully servo machine which is our newly designed these years. The machine widely used in the film patching to be package with or without the window of the wine box, gift box, napkin box, cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes.
The fully servo motor parts included the:
Paper feeder part,chain rail pusher part, the suction belt part, gluing roller part, film suction drum part, the cutting knife part and film feeding part. Add one touch screen to easy control and adjust the machine.
The whole machine adopts intelligent motion control system and man-machine interface. The close cooperation between the servo and the photoelectric sensor enables the deviation of the product to be effectively monitored and corrected at each parts, and finally make the high quality products that customers need.
Parameters
MODEL | XY1100-S | |
Cardboard | G/㎡ | 200-800gsm |
Corrugated paper | mm | ≤7mm |
Max.Working Speed | PCS/H | (Corner cutting)5000-10000 (Normal cutting) 4000-12000 |
Size of cardboard | MM | 120x140-780*1100mm |
INCH | 4.7x5.51- 30.7x43.3 | |
Size of window | MM | 60x40 -400x500mm |
INCH | 2.36x1.57-15.7x19.6 | |
Film thickness | MM | 0.05-0.25mm |
Power Supply | KW | 19.5kw |
Weight | KG | 3500kg |
Overall Dimensions | MM | 6.5*2.15*1.95M |
