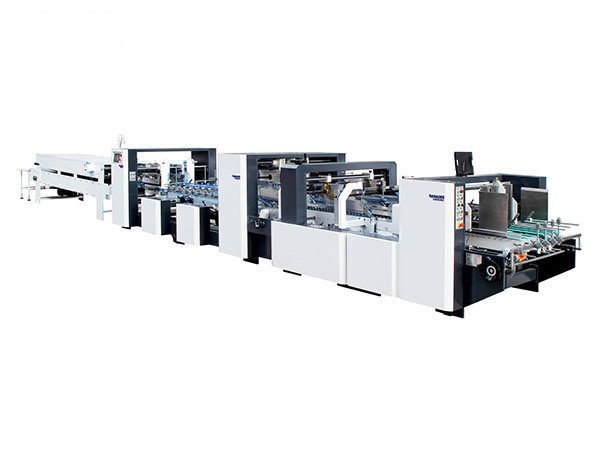

AC SERIES Automatic High-Speed Bottom Lock Folder Gluer
AC Parameters
| Name | GK-AC Automatic High-speed gluing folding machine | ||
| model | GK-1200AC | GK-1450AC | GK-1600AC |
| Paper Material | Cardboard 210-800g A/B/E Corrugated | ||
| Max. Liner speed | Max. 260 meter/minute | ||
| Feeding way | Automatically and continuously feeding | ||
| Way of folding | Fold 2 and fold 4 are 180°, | ||
| Glue Material | Water-base cold glue | ||
| Power Supply | 3P380V50HZ | ||
| Total power | 14kw | 17.5kw | 19kw |
| Weight | 8T | 9T | 10T |
| Over dimension | 15x1.85x1.6m | 15x2.1x1.6m | 16x2.3x1.6m |
Samples Parameters
| Straight-line box |  | |||
| Model | 1200Type | 1450Type | 1600Type | |
| A | 250-1200 | 300-1450 | 300-1600 | |
| B | 80-700 | 80-1000 | 80-1000 | |
| C(Min) | 120 | 120 | 120 | |
| Crash lock bottom box |  | |||
| Model | 1200Type | 1450Type | 1600Type | |
| A | 280-1200 | 300-1450 | 300-1500 | |
| B | 80-700 | 100-700 | 100-700 | |
| C(Min) | 25 | 25 | 25 | |
| D(Min) | 35 | 35 | 35 | |
| E(Min) | 100 | 100 | 100 | |
| Double sides box |  | |||
| Model | 1200Type | 1450Type | 1600Type | |
| A | 250-1050 | 250-1200 | 250-1350 | |
| B | 100-800 | 100-1000 | 100-1000 | |
| C(Min) | 10-50 | 10-50 | 10-50 | |
| 80 | 80 | 80 | ||
| E(Min) | 230 | 230 | 230 | |
