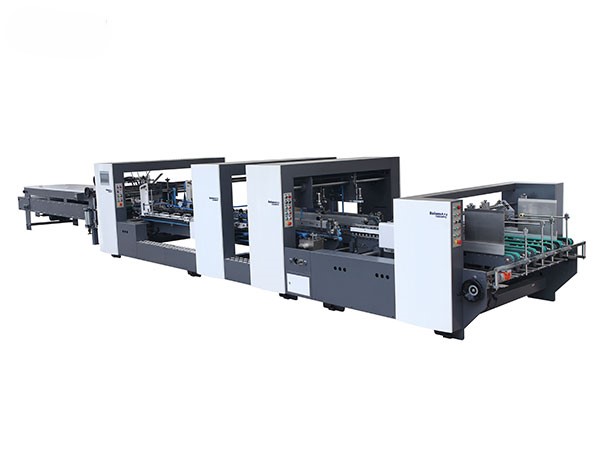

PC SERIES Automatic High-Speed Folder Gluer
PC Parameters
| Name | GK-PC Automatic High-Speed Folder Gluer | |||
| model | GK-1200PC | GK-1450PC | GK-1600PC | GK-1800PC |
| Paper Material | Cardboaed210-800g A/B/E Corrugated | |||
| Max. Liner speed | Max. 260 meter/minute | |||
| Feeding way | Automatically and continuously feeding | |||
| Way of folding | Fold 1 and fold 3 are 180° | |||
| Glue Material | Water-base cold glue | |||
| Power Supply | 3P380V50HZ | |||
| Total power | 18.8kw | 20.5kw | 21.8kw | 21.8kw |
| Weight | 8T | 9T | 10T | 12T |
| Over dimension | 15x1.85x1.6m | 15x2.1x1.6m | 15x2.3x1.6m | 15x2.5x1.6m |
Samples Parameters
| Straight-line box |  | ||||
| Model | 1200PC | 1450PC | 1600PC | 1800PC | |
| A | 250-1200 | 300-1450 | 300-1600 | 300-1800 | |
| B | 80-700 | 80-1000 | 80-1000 | 80-1000 | |
| C(Min) | 120 | 120 | 120 | 120 | |
| Crash lock bottom box |  | ||
| Model | 1200Type | 1450Type | |
| A | 1200-250 | 1450-250 | |
| B | 800-100 | 800-100 | |
| C(Min) | 25 | 25 | |
| D(Min) | 30 | 30 | |
| E(Min) | 40 | 40 | |
