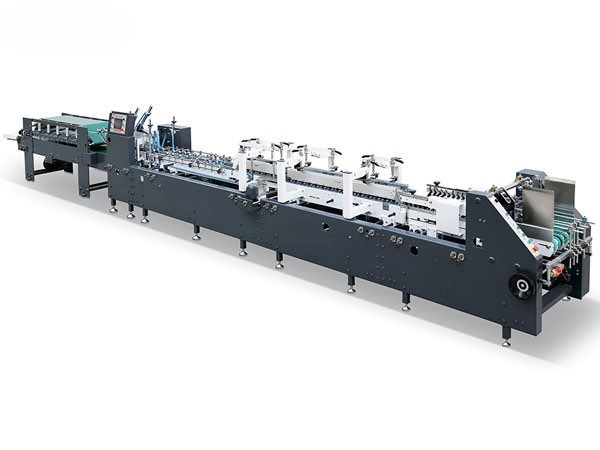

AS-B Automatic Pre-folding Folder Gluer
AS-B Parameters
| Name | AS-B Automatic Pre-folding Folder Gluer | |||
| Model | 650AS-B | 800AS-B | 1100AS-B | |
| Paper Material | Cardboard210-800g, E Corrugated | |||
| Max. Liner speed | Max. 260 meter/minute | |||
| Feeding way | Automatically and continuously feeding | |||
| Way of folding | Fold 2 and fold 4 are 135° | |||
| Glue Material | Water-base cold glue | |||
| Total Power | 11.2 kw | 11.2 kw | 11.2 kw | |
| Weight | 3T | 3.5T | 4T | |
| Over dimension | 11.8x1.3x1.45m | 11.8x1.5x1.45m | 11.8x1.8x1.45m | |
Samples Parameters
| Straight-line box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 90-650 | 90-800 | 120-1100 | |
| B | 60-800 | 60-800 | 60-800 | |
| C(Min) | 35 | 35 | 35 | |
