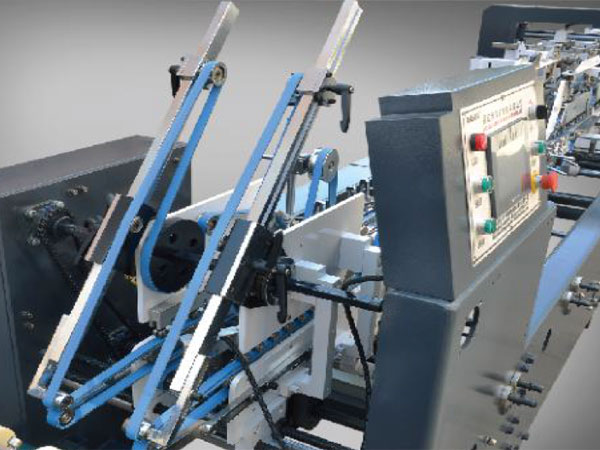

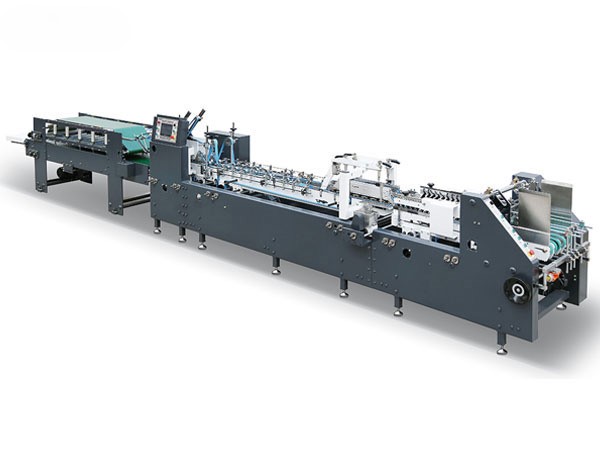

AS-A Automatic Folder Gluer
AS-A Parameters
| Name | AS-A Automatic Gluing Folding Machine | ||
| Model | 650AS-A | 800AS-A | 1100AS-A |
| Paper Material | Cardboard210-800g, E Corrugated | ||
| Max. Liner speed | Max. 260 meter/minute | ||
| Feeding way | Automatically and continuously feeding | ||
| Way of folding | Fold 2 and fold 4 are 180° | ||
| Glue Material | Water-base cold glue | ||
| Total Power | 9.2KW | 9.2KW | 9.2KW |
| Weight | 2.5T | 3T | 3.5T |
| Over dimension | 10.5x1.3x1.45m | 10.5x1.5x1.45m | 10.5x1.8x1.45m |
Samples Parameters
| Straight-line box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 90-650 | 90-800 | 120-1100 | |
| B | 60-800 | 60-800 | 60-800 | |
| C(Min) | 35 | 35 | 35 | |
Related Products
XL SERIES Automatic High Speed Intelligent 4-6 corner Folder Gluer
XL series Automatic high speed intelligent folding gluing machine combined with new advanced technology,controlled by memory system,it is another masterwork of Zhejiang New Luolan Machinery.Automatic folder gluer machine can store memories of different data of different shapes of boxes,which realizes automatic memory control rocking plate position and increases efficiency and accuracy.
LC-6S Automatic High Speed ( Hook-less belts climbing ) Folder Gluer
Automatic high speed folding gluing machine is another masterwork of Zhejiang New Luolan Machinery. suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes. Intelligent Memory Function Folder Gluer, momory function is an ideal equipment for repeatingdifferent jobs after the first trail with less works . XL-J is suitable for straight-line, double-wall, auto lockbottom, 4 6 corners type folding cartons.

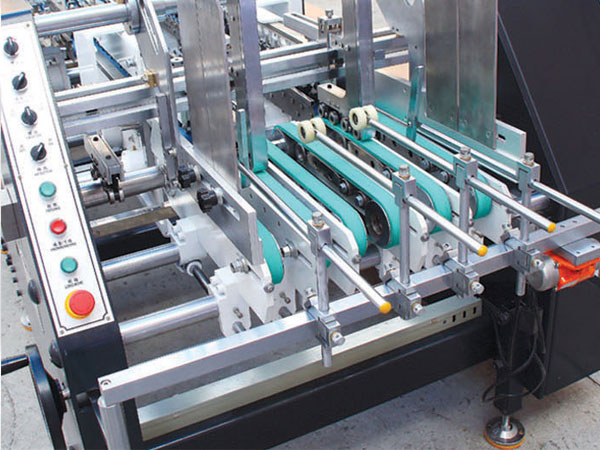

LC-S High Speed Automatic 4 and 6 corner Folder Gluer
Fast job changeover
•Driven by ribbed V belt
•Multi-type work capabilities
LC-7S Automatic High Speed 4 and 6 corner Folder Gluer
The LC-7S has undergone continuous research and development, iteration, and is reflected in its precise, fast, and intelligent order switching, multi-functional configuration, including 90 ° rotation, left and right corner belt pre-folding, automatic lifting and lowering of the folding section, and extended crash bottom section and main folding parts. It has V-ribbed belt drives and can produce single line boxes, box in box boxes, crash bottom boxes, and 4/6 corner boxes.
AS-S Automatic Four Six Corners Folder Gluer
AS-S series box folding gluing machine machine is straight line, lock bottom, 4 & 6 corner cartons and more, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
CS SERIES Automatic High Speed 4 and 6 corner Folder Gluer
Rail width can be horizontally adjusted and set by seven
pieces 30mm thickened feeding belt and 10mm metal board.
Operators can operate feeder switch in any regional.
AS-B Automatic Pre-folding Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
AS-C Automatic High Speed Lock Bottom Folder Gluer
6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.

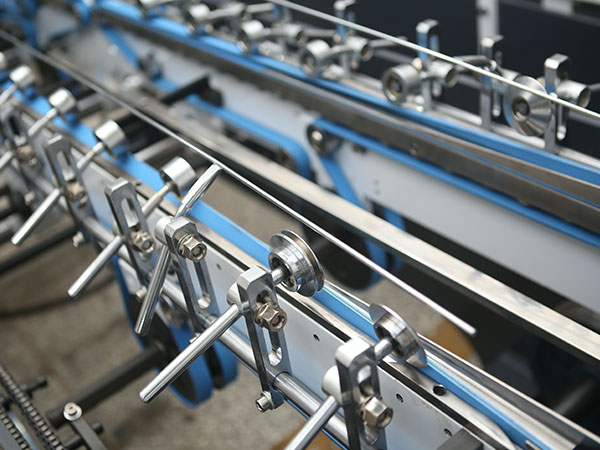

GK-CB Automatic crash lock bottom folder gluer
Series CB model A folding gluing machine is 4-fold bottom-lock machine,adopt synchronous belt transmission and electronic continuously variable speeder,domestic standard electronic components,feeding section adopt mechanic continuously variable,stable and easy to control and operate.It is widely used in food,medicine,cosmetics,stationery and other ordinary cartons,process and glue for all kinds of bottom-locked cartons. Pre-fold section is applied to auto packaging, fold 2 and fold 4 of all cartons can reach 90°and 180°,perfectly combing the requirements of auto packaging together.
GK-A Automatic folder gluer
5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding Continuously Variable Speeder to ensure feeding internal and stable transmission One touch Pneumatic knife, easy for the adjustment of ffeeding belts
GK-B Automatic prefolding folder gluer with 2 guns
5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding Continuously Variable Speeder to ensure feeding internal and stable transmission One touch Pneumatic knife, easy for the adjustment of ffeeding belts
GK-BA Automatic prefolding folder gluer
Series BA Two folds folding gluing machine is Pre-fold machine, adopt synchronous belt transmission and electronic continuously variable speeder ，domestic standard electronic components，feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together.
PC SERIES Automatic High-Speed Folder Gluer
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment
PC SERIES Automatic High-Speed Bottom Lock Folder Gluer
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment
PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer
Feeding belts equipped with the function of air suction
Equipped with new type of feeding knife. You can adjust them according to the box shapes.
With special pushing teeth function, easy to adjust the backing board.
Vibration device coordinate with motor which helps machine consecutive and automatic feeding quickly and simply
SP SERIES Automatic Double Splicing Folding Gluing Machine
The fully automatic dual splicing box machine adopts an upper and lower paper output mechanism. The upper paper output mechanism breaks the traditional belt friction force due to the upward printing surface of the cardboard box. For products with high requirements such as laminating film, the paper output is prone to scratching, which is a pain point in the industry. In response to industry pain points, we have innovatively developed a new downward suction Feida paper feeding mechanism.
Automatic Folder Gluer Stitcher Machine
The biggest feature of this machine is its all electric computer operation, which is easy to operate and balances quality and efficiency, saving manpower and material resources. It has two functions: nailing and pasting. Bottom less and covered cardboard boxes can also be nailed; This machine adopts computer screen display operation and fault instructions:
AC SERIES Automatic High-Speed Folder Gluer
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment more convenient and stable.baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.

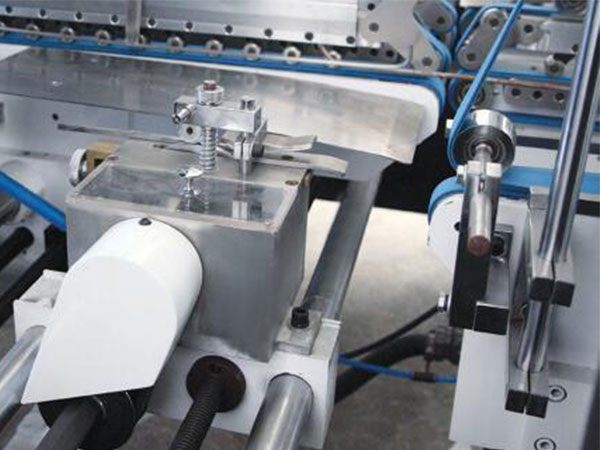

AC SERIES Automatic High-Speed Bottom Lock Folder Gluer
