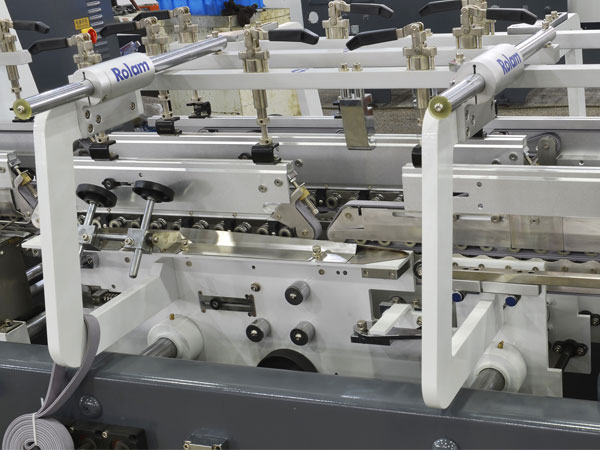

GS SERIES Automatic High Speed 4 and 6 corner Folder Gluer
GS Parameters
| GS series | 650GS | 800GS | 1100GS |
| Processed Materials | |||
| Carton board max. | 650 MM | 800 MM | 1100 MM |
| Corrugated flute type | A,B,E | A,B,E | A,B,E |
| Capability | |||
| Speed max. | 400 m/min | 400 m/min | 400 m/min |
| Inching speed | 10 m/min | 10 m/min | 10 m/min |
| Thickness of folded box max. | 12 mm | 20 mm | 20 mm |
| Blank width | 650 mm | 800 mm | 1100 mm |
| Total Power | 29.5kw | 31 kW | 31.2 kW |
| Compressed air | 6 bar | 6 bar | 6 bar |
| Air compressor capacity | 10 m³/h | 10 m³/h | 10 m³/h |
| Air tank capacity | 60 L | 60 L | 60 L |
| Dimensions & weight | |||
| Length*Width*Height | 12*1.4*1.8m | 16.5 *1.4*1.8m | 16.5*1.7*1.9m |
| Net Weight | 6T | 6.6T | 7.6 T |
GS Features introduction
Paper Feeding Section
Rail width can be horizontally adjusted and set by seven pieces 30mm
thickened feeding belt and 10mm metal board.
Operators can operate feeder switch in any regional.
Embossing drive wheel guide the feeding section belt, side feed gates
in the right and left are adjustable according to the products.
Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply. Feeder section can stack 400MM
height paper board.
ndependently motorized servo motor control, simultaneous
feeding mode with the main motor.
Feeder section equipped with three pieces feeding knife,
adjust the asymmetrical lengths as per the box sample.
Pre-folding section
Special first folding line pre-fold 180°. third line 165° ,which perfectly
meeting the requirements of automatic packaging industry.
Crash lock bottom section
Compiete set of crash lock bottom device makes the lock bottom part perfectly .Sectional-type upper belt board with special design.
Lower gluing tank
lower gluing tank is large volume.
Easy to remove and clean
Electronic upper gluing system by guns.
Folding and closing
The Second and fourth folding line 180°
Folding and closing section transmit from right and left side ,the belt
speed can be adjusted separately and correct the way of box running
to ensure straightly delivery.
Trombone section
Up and down belt can be adjusted separately.
Equipped with photo electronic counting device and kicking paper device,
which can press the paper after accounting and make it easy to pack .
Also equipped with feeding paper inspection device.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
4 and 6-corner device
Motorized and untimed electronic back folding system with intelligent
servo motor technology
Spraying System
Equipped with three guns, convenient in the production of 4/6 corner
box and various special-shaped box, gluing quickly and accurately sizing
Samples Parameters
| Straight-line box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 75-650 | 75-800 | 75-1100 | |
| B | 60-650 | 60-800 | 60-800 | |
| C(Min) | 35 | 35 | 35 | |
| Crash lock bottom box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 160-650 | 160-800 | 160-1100 | |
| B | 90-900 | 90-900 | 90-900 | |
| C(Min) | 20 | 20 | 20 | |
| D(Min) | 30 | 30 | 30 | |
| E(Min) | 40 | 40 | 40 | |
| Tapered box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 160-650 | 160-800 | 160-1100 | |
| B | 90-650 | 90-800 | 90-1100 | |
| C(Min) | 40 | 40 | 40 | |
| D(Min) | 35 | 35 | 35 | |
| E(Min) | 20 | 20 | 20 | |
| 4 corners box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 160-500 | 160-800 | 160-1100 | |
| B | 120-650 | 120-800 | 120-1000 | |
| C(Min) | 30-100 | 30-100 | 30-100 | |
| D(Min) | 90 | 90 | 90 | |
| E(Min) | 80 | 80 | 80 | |
| 6 corners box |  | |||
| Model | 650Type | 800 Type | 1100 Type | |
| A | 280-650 | 280-800 | 280-1100 | |
| B | 120-800 | 120-800 | 120-800 | |
| C(Min) | 30-100 | 30-100 | 30-100 | |
| D(Min) | 90 | 90 | 90 | |
| E(Min) | 80 | 80 | 80 | |
Related Products

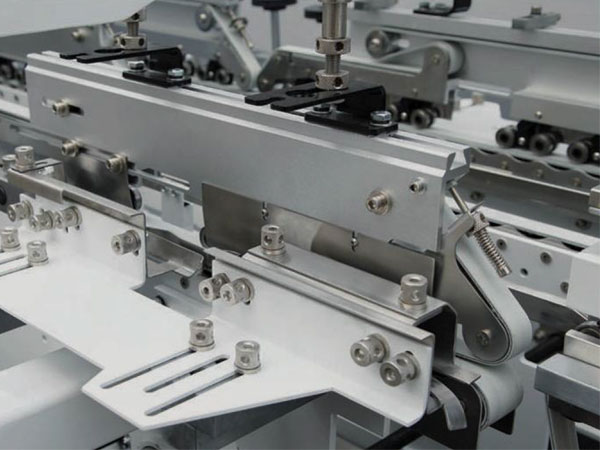

XL SERIES Automatic High Speed Intelligent 4-6 corner Folder Gluer
